We build MSD machines to your required motor configuration, vessel capacity, and blade setup. Tell us your material type and production volume and we’ll configure the right multi-shaft disperser for your paint production line.

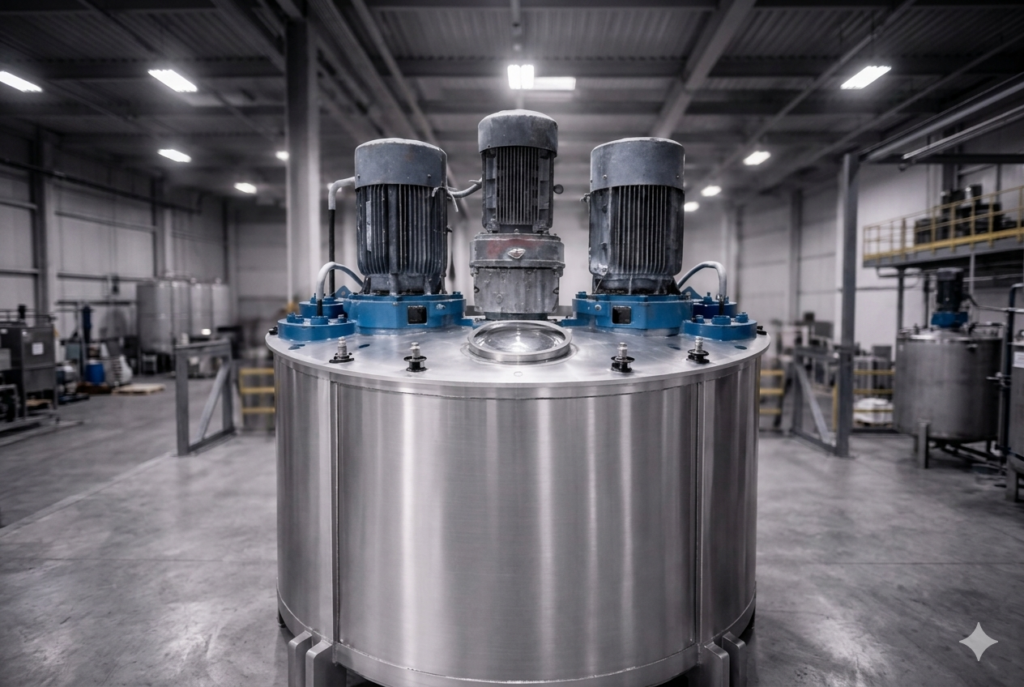

The MSD Mixing Machine is a multi-shaft disperser used in the paint industry to mix different materials such as glycoid, liquid chemicals, distemper, and various types of paint. It operates with the help of three motors working simultaneously — ensuring uniform mixing of all ingredients throughout the entire vessel volume. The multiple blades driven by different shafts perform dispersing and mixing simultaneously for complex formulations.
The MSD combines high-speed dispersion with low-speed bulk mixing in a single machine — making it ideal for paint formulations that require both shearing of pigments and thorough blending of all components. With a vessel working capacity of 4000 kg and a powerful 3-motor configuration, it is designed for large-scale industrial paint production environments.
- 3-motor configuration — high-speed disperser + low-speed anchor + gear motor
- Combines high-speed dispersion with low-speed bulk mixing in one machine
- Suitable for glycoid, distemper, liquid chemicals, and all paint types
- Large vessel working capacity — up to 4000 kg
- Multiple blades operating simultaneously — no dead zones
- Uniform mixing throughout the full vessel volume
- Ideal for large-scale industrial paint production lines
- Motor and blade configuration customizable per formulation requirements
- Heavy-duty construction for continuous industrial operation
| Specification | Details |
|---|---|
| Main Motor Power | 45 kW |
| Main Motor Power (2nd shaft) | 45 kW |
| Gear Motor Power | 15 kW |
| Total Motors | 3 |
| Vessel Working Capacity | 4000 kg |
| Number of Shafts | 3 |
| Blade Types | High-speed disperser + Anchor/paddle + Gear-driven element |
| Operation | Continuous — all 3 motors run simultaneously |
| Application | Large-scale industrial paint production |
- Paint manufacturing — all types
- Distemper production
- Glycoid mixing
- Liquid chemical blending
- Industrial coatings production
- Decorative paint manufacturing
- Automotive refinish paint production
- Large-scale chemical processing
Tell us your required vessel capacity, production volume, and material type. CEO Muhammad Ahmad will provide a factory-direct price and configure the right 3-motor MSD setup for your paint production line.
