We manufacture 8 basket mill models from 11 kW to 75 kW. Tell us your required vessel size, basket capacity, and material type and we’ll configure the right model for your production line.

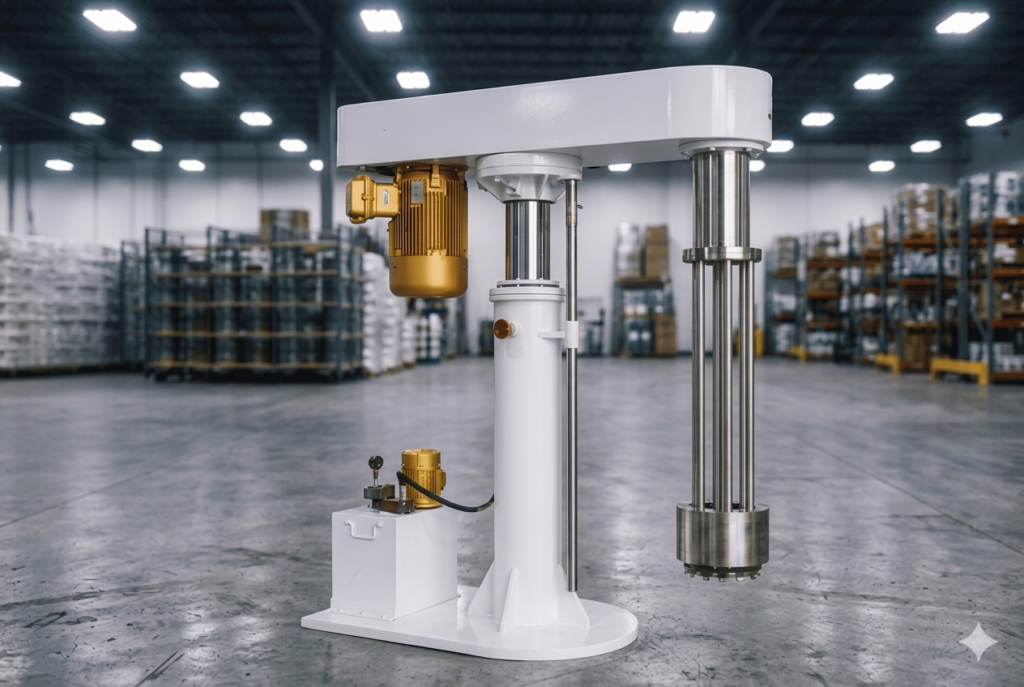

The Basket Mill Machine is a highly efficient in-tank grinding and dispersing machine used in pigment processing and paint manufacturing. It consists of a motor connected to a vertical shaft fitted with blades. Grinding balls are added inside the grinding basket, which help improve the quality and smoothness of the pigment. As the shaft rotates, the blades create strong agitation — causing the grinding balls to move rapidly and break down pigment particles, reducing their size and enhancing the finish of the material.
The material is placed in a vessel below the shaft, where continuous mixing and grinding take place. A hydraulic system allows the shaft to move up and down, making it easier to load and unload material and achieving efficient mixing. New Star Engineering Works manufactures 8 Basket Mill models — from SYM-11 (11 kW) to SYM-75 (75 kW) — to cover a wide range of production volumes and vessel sizes.
| Model | Power (kW) | Speed (RPM) | Basket (L) | Bead Size (mm) |
|---|---|---|---|---|
| SYM-11 | 11 | 0–1450 | 7.9 | 0.8–2.4 |
| SYM-15 | 15 | 0–1450 | 11.6 | 0.8–2.4 |
| SYM-18.5 | 18.5 | 0–1200 | 17.6 | 0.8–2.4 |
| SYM-22 | 22 | 0–1200 | 21.7 | 0.8–2.4 |
| SYM-37 | 37 | 0–1000 | 33.4 | 0.8–2.4 |
| SYM-45 | 45 | 0–1000 | 48.0 | 0.8–2.4 |
| SYM-55 | 55 | 0–800 | 59.5 | 0.8–2.4 |
| SYM-75 | 75 | 0–700 | 75.0 | 0.8–2.4 |
Tell us your required vessel size, motor power, and basket capacity. CEO Muhammad Ahmad will provide a factory-direct price and help you choose the right model.
